Factory Cat Pilot HD Front Right

Factory Cat Pilot-HD

Scrubbers
Disk and Cylindrical / 26'' - 28''
Down Pressure
Up to 150 lbs / with Auto Adjust
Power
Battery / Up to 4.0 hours Runtime
Tank Capacity
22 Gallons

Lease

Flexible 12 to 60 month lease options

Purchase

For questions, call 01282 416139

Machine Summary

FactoryCat’s PILOT-HD Floor Scrubber Dryer is known for its simple design and durable construction, offering unmatched value for the customer. The PILOT-HD Micro Rider Floor Scrubber comes equipped with a Traction drive which includes a powerful all-gear transaxle for climbing ramps and max operator ease.

While keeping with the constant durability that FactoryCat machines have to offer, your operators will find the PILOT-HD Floor Scrubber Dryer easy to manoeuvre and simple to service. The deck is protected by steel guards and large polyurethane rollers to keep the unit from marking walls.

Factory Cat Pilot HD cleaning a warehouse floor

Key Features

control panel
Machine Control Panel

uses off-the-shelf toggle and marine duty switches and features universal icons which simplifies training.

vacuum muffler
Vacuum Muffler

allows machine to consistently achieve as low as 67 dB while thoroughly drying the floor.

squeegee adjustment
Squeegee Adjustments made simple

with quick change squeegee latch allows toolless maintenance and 4-sided squeegee blade.

fill system
Fill System

features a retractable hose for easy filling on standard sink-faucets and a stainless screen for bucket filling.

oversized vacuum screen shut-off
Oversized Vacuum Screen Shut-Off

quickly arrests overfill issues to protect the Vacuum Motor

high performance motors and down pressure
High Performance motors and down pressure

provides an unmatched standard of cleaning.

Technical Details

Tank MaterialPoly 3/8'' (9.5 mm)
Chassis Construction1/8'' Steel (3.2 mm) Powder Coated Steel
Front Wheel (Diameter × Width)8'' × 3'' (20.3 × 7.6 cm) - Non-Marking Solid Grey
Rear Wheels (Diameter × Width)(2×) 12'' × 3'' ([2×] 30.5 × 7.6 cm) - Solid Black
Size (L × W × H)48'' × 24'' × 55'' (121.9 × 61 × 139.7 cm)
Weight (w/o Batteries)525 - 575 lbs (238 - 261 kg)
Weight (w/ 245 ah Batteries)825 - 875 lbs (374 - 397 kg)
Disk Dimensions26'' - (2×) 13'' Diameter (66 - [2×] 33 cm)
Disk Motor(2×) 0.75 hp ([2×] 559 watts)
Disk Brush Speed300 rpm
Cylindrical Dimensions25'' - (2×) 6'' × 23'' (63.5 - [2×] 15.2 × 58.4 cm)
Cylindrical Motor(2×) 0.75 hp / 350 rpm ([2×] 559 watts)
Cylindrical Brush Speed750 rpm
Brush Pressure Settings(5) with Auto Adjust
Brush Down PressureUp to 150 lbs (68 kg) / 500 lbs (227 kg) Actuator Rating
System Voltage36 VDC
Standard Battery175 ah WET
Optional Battery225 ah WET / 215 ah AGM
Run TimeUp to 4 Hours
Charger120VAC / 60 Hz Input - 36VDC / 25 amp Output
Power0.75hp - All Gear / Sealed (559 watts)
Forward Speed0 - 290 ft/min / 0 - 3.3 mph (0 - 88 m/min / 0 - 5 km/h)
Scrubbing Speed0 - 229 ft/min / 0 - 2.6 mph (0 - 70 m/min / 0 - 4 km/h)
Reverse Speed0 - 202 ft/min / 0 - 2.3 mph (0 - 62 m/min / 0 - 4 km/h)
Solution Tank Capacity22 Gallons (83.3 liters) - w/ Graduated Site Tube
Solution Flow / Filter0 - 0.7 GPM / Stainless Inline (0 - 2.6 LPM)
Recovery Tank Capacity23 Gallons (87.1 liters) - 2'' diameter Drain Hose
Demisting Chamber1.25 Gallons (4.7 liters)
Drain Saver30 cubic inches (492 cubic cm)
Vacuum Power1.0 hp / 2 Stage (740 watts)
Vacuum Specs (Water Lift / Airflow)68'' / 72 cfm (173 cm / 2 cm/m)
SqueegeeCurved w/ 4-sided Rear Blade & Quick Change Latch 26D, 25C - 36'' (91.4 cm) 28D - 39'' (99.1 cm)
Cleaning Width26'' & 28'' - Disk (66 & 71.1 cm) 25'' - Cylindrical (63.5 cm)
Productivity - TheoreticalUp to 40,000 sqft (3,716 sqm)
Productivity - PracticalUp to 18,519 sqft (1,721 sqm)

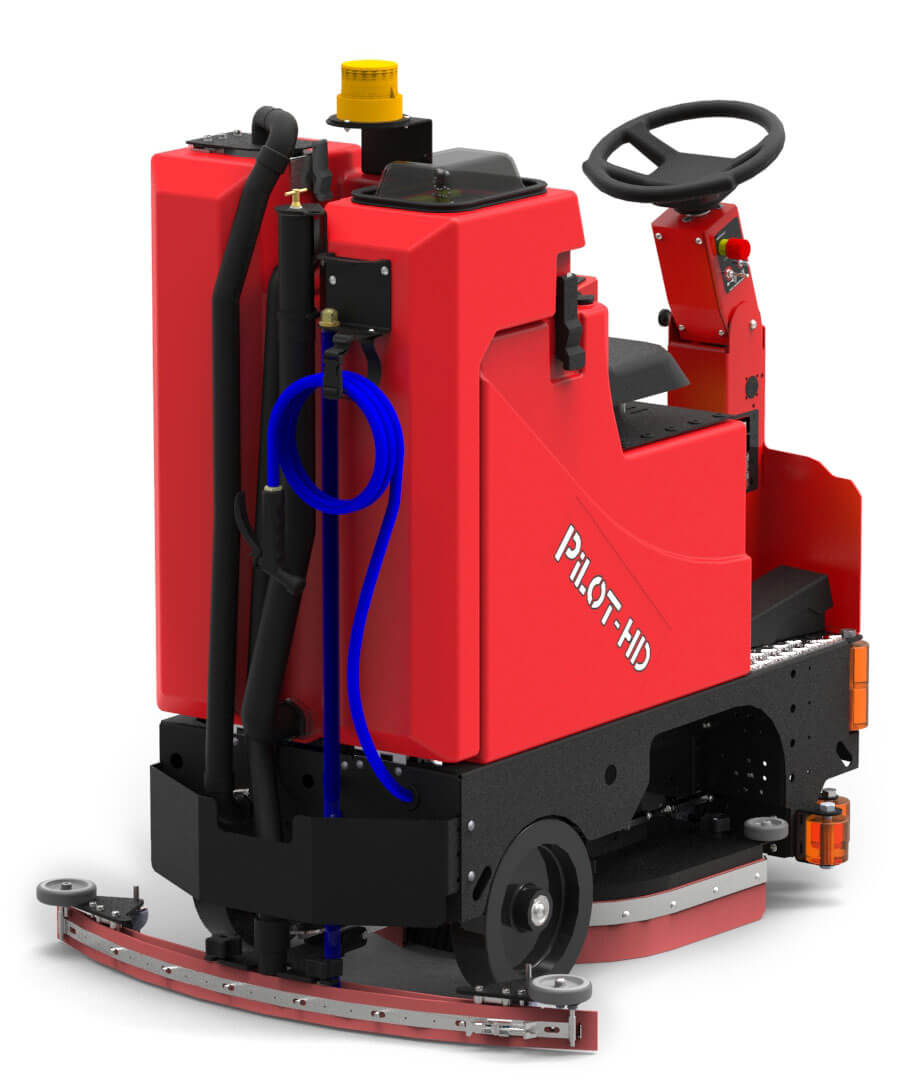

pilot-hd back right
