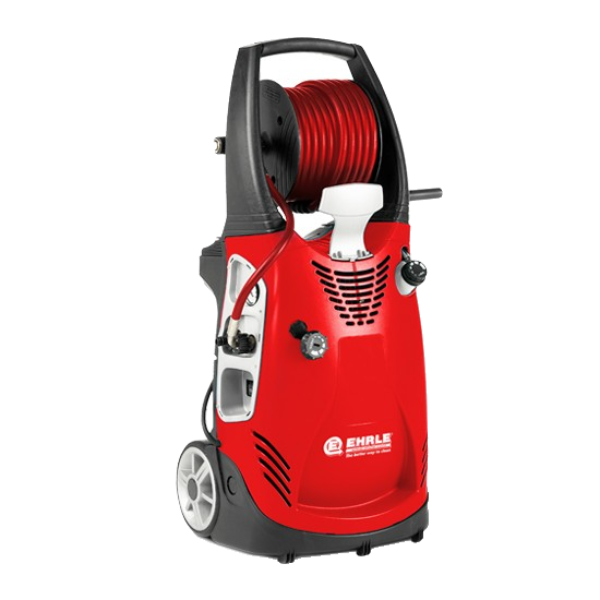

EHRLE KD 2×2 Series
Weight
34 kg
Length x width x height
380x380x900 mm
Max. Inlet temperature
45 °C
Pump speed
1400 rpm
Models Available:
KD523 UK Standard
KD523 UK Premium
Key Features
Robust
Self-Supporting, robust, impact-resistant device cover made of ABS
high-performance ceramic piston
Both a visual cut-off system and a float shut-off system are fitted up in the vacuum as well as a double filter pad and an absorbent pad are always present
Unloader safety valve
Comes with infinitely variable pressure and quantity regulation
Advanced cleaning
A 2 litre cleaning detergent tank, 900mm spray lance and stainless steel jet nozzle as standard
Technical Details
KD523 UK Standard
| Voltage | 240 V |
| Frequency | 50 Hz |
| Operating pressure | 30-110 bar / 3-11 MPa |
| Max. Pressure | 130 bar / 13 MPa |
| Water output | 300-600 l/h |
| Nozzle size | 040 |
| Max. Inlet temperature | 45 °C |
| Pump speed | 1400 rpm |
| Connected load | 2.6 kW / 9.0 A |
| Electrical protection | 13 A slow-blowing |
| Length x width x height | 380x380x900 mm |
| Weight | 34 kg |
KD523 UK Premium
| Voltage | 240 V |
| Frequency | 50 Hz |
| Operating pressure | 30-110 bar / 3-11 MPa |
| Max. Pressure | 130 bar / 13 MPa |
| Water output | 300-600 l/h |
| Nozzle size | 040 |
| Max. Inlet temperature | 45 °C |
| Pump speed | 1400 rpm |
| Connected load | 2.6 kW / 9.0 A |
| Electrical protection | 13 A slow-blowing |
| Length x width x height | 390x380x900 mm |
| Weight | 36 kg |
