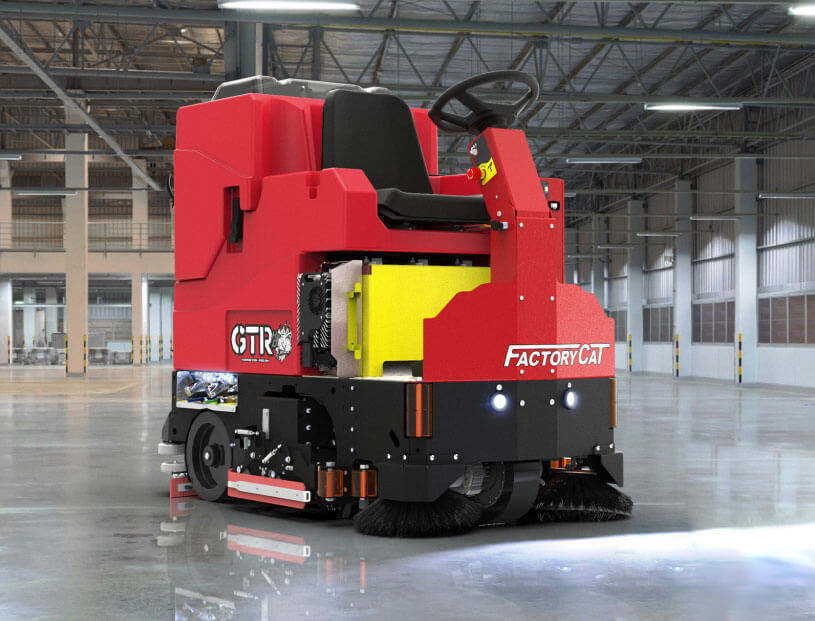

Factory Cat GTR
Machine Summary
FactoryCat’s GTR Rider Floor Scrubber Dryer is known for its simple design and durable construction, offering unmatched value for the customer. The GTR Floor Scrubber Dryer comes equipped with a powerful front-wheel drive for climbing ramps and max operator ease.
While keeping with the constant durability that FactoryCat machines have to offer, your operators will find the GTR Floor Scrubber Dryer easy to maneuver and simple to service. The deck is protected by the steel frame and large polyurethane rollers to keep the unit from marking walls.
Key Features
Machine Control Panel
uses off-the-shelf toggle and marine duty switches featuring universal icons which simplifies training.
Vacuum Muffler
allows machine to consistently achieve as low as 70 dBA while thoroughly drying the floor.
Squeegee Adjustments made simple
tool-less maintenance of the squeegee blade.
Fill System
features a retractable hose for easy filling on standard sink-faucets and a stainless screen for bucket filling.
Oversized Vacuum Screen Shut-Off
quickly arrests overfill issues to protect the Vacuum Motor.
High Performance motors and down pressure
provides an unmatched standard of cleaning.
Technical Details
BODY CONSTRUCTION / DIMENSIONS
| Tank Material: | Poly 3/8'' (9.5 mm) |
| Chassis Construction: | 3/16'' (4.8 mm) & 1/8''(3.1 mm)Steel Powder Coated Steel |
| ST Front Wheel (Diameter × Width): | 10'' × 3'' (25.4 × 7.6 cm) - Solid Black Hytraq |
| HD Front Wheel (Diameter × Width): | 12'' × 3'' (30.5 × 7.6 cm) - Solid Black Hytraq |
| Rear Wheels (Diameter × Width): | (4×) 12'' × 3'' ([2×] 30.5 × 7.6 cm) - Solid Black |
| Size (L × W × H): | 62'' × 32'' × 57'' (157.5 × 81.3 × 144.8 cm) |
| ST Weight (w/o Batteries): | 790 lbs(358.3 kg) |
| HD Weight (w/o Batteries): | 914 lbs (414.6 kg) |
| ST Weight (w/ Batteries): | 1,186 lbs (538.0 kg) |
| HD Weight (w/ Batteries): | 1,436 lbs (651.4 kg) |
BRUSH / PAD SYSTEM
| Disk Dimensions 30'': | (2×) 15'' Ø(76.2 - [2×] 38.1 cm) |
| Disk Dimensions 34'': | (2×) 17'' Ø(86.4 - [2×] 43.2 cm) |
| Disk Brush Speed: | 350 rpm |
| Cylindrical Dimensions 29'': | (2×) 6'' Ø x 27'' (73.7 - [2x] 15.2 x 68.6 cm) |
| Cylindrical Dimensions 33'': | (2×) 6'' Ø x 31'' (83.8 - [2x] 15.2 x 78.7 cm) |
| Cylindrical Brush Speed: | HD: 825 rpm / ST: 650 rpm |
| ST Motors (Disk & Cylindrical): | (2×) 0.75 hp / 350 rpm ([2×] 550 watts) |
| HD Motors (Disk & Cylindrical): | (2×) 1.5 hp / 350 rpm ([2×] 1,118.6 watts) |
| Brush Pressure Settings: | (5) with Auto Adjust |
| Brush Down Pressure: | Up to 225 lbs (102.1 kg)/ 500 lbs (226.8 kg) Actuator Rating |
POWER SYSTEM
| System Voltage: | 36 VDC |
| ST Standard Battery: | 245 ah WET |
| ST Optional Batteries: | 250 ah AGM |
| HD Standard Battery: | 315 ah WET |
| HD Optional Batteries: | 360 ah WET / 335 ah AGM |
| Run Time:*Run time is calculated based on HD Batteries, Down-pressure #1, typical Operator break periods, and Drain & Refill times. | Up to 5.0 Hours* |
| ST Charger: | 120VAC / 60 Hz Input - 36VDC / 25 amp Output |
| HD Charger: | 120VAC / 60 Hz Input - 36VDC / 36 amp Output |
DRIVE SYSTEM
| ST Power: | 1.0hp - All Gear / Sealed (745 watts) |
| HD Power: | 2.0hp - All Gear / Sealed (1491 watts) |
| Forward Speed: | 0 - 320 ft/min / 0 - 3.6 mph (0 - 98 m/min / 0 - 6 km/h) |
| Scrubbing Speed: | 0 - 256 ft/min / 0 - 2.9 mph (0 - 78 m/min / 0 - 5 km/h) |
| Reverse Speed: | 0 - 230 ft/min / 0 - 2.6 mph (0 - 70 m/min / 0 - 4 km/h) |
SOLUTION / RECOVERY SYSTEMS
| Solution Tank Capacity: | 46 Gallons (174.1 liters) - w/ Graduated Site Tube |
| Solution Flow / Filter: | 0 - 0.7 GPM / Stainless Inline (0 - 2.6 LPM) |
| Solution Flow / Filter: | 0 - 0.7 GPM / Stainless Inline (0 - 2.6 LPM) |
| Recovery Tank Capacity: | 49 Gallons (185.5 liters) - 1.5'' diameter Drain Hose |
| Demisting Chamber: | 2 Gallons (7.6 liters) |
| Drain Saver: | 130 cubic inches (2,130.3 cm3) |
| Vacuum Power: | 1.0 hp / 2 Stage / 6.6'' (710 watts / 16.5 cm) |
| Vacuum Specs (Water Lift / Airflow): | 73'' / 96 cfm (185.4 cm / 2.7 cm/m) |
| Squeegee: | Curved w/ 4-sided Rear Blade & Quick Change Latch |
| Squeegee 33'': | 30D, 29C - 33'' (83.8 cm) |
| Squeegee 36'': | 34D, 33C - 36'' (91.4 cm) |
GENERAL
| Cleaning Width 30'' & 34': | Disk (76.2 & 86.4 cm) |
| Cleaning Width 29'' & 33'': | Cylindrical (73.7 & 83.8 cm) |
| Sound Levels:**Decibel levels per ISO 11201 as recommended by the American Association of Cleaning Equipment Manufacturers & OSHA | 70 dBA** |
| Productivity - Theoretical:**Productivity is based off of ISSA 2010 Cleaning Times | Up to 46,875 sqft (4,354.8 sqm)** |
| Productivity - Practical:**Productivity is based off of ISSA 2010 Cleaning Times | Up to 21,661 sqft (2,012.4 sqm)** |
