Factory Cat Micro-HD
Machine Summary

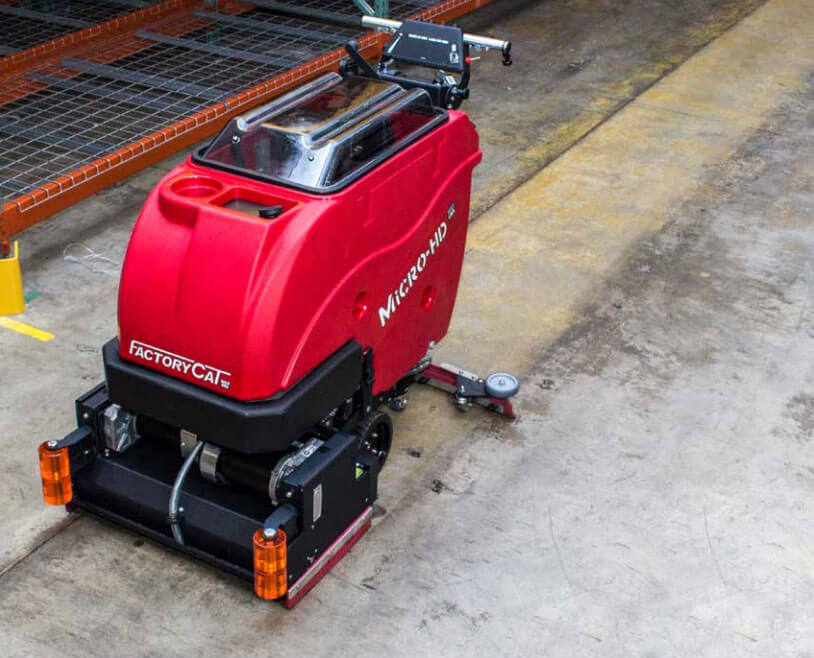

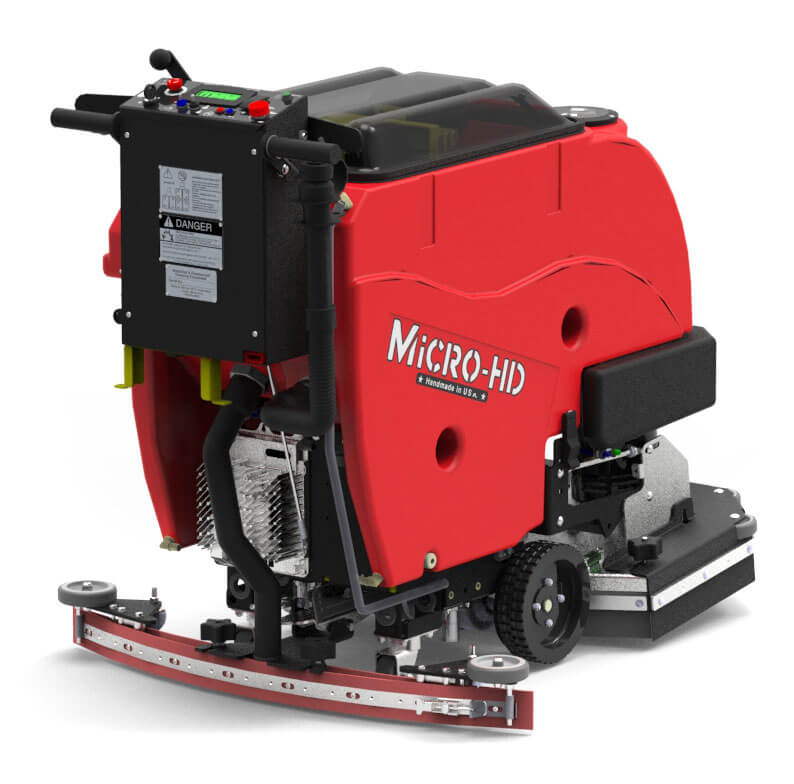

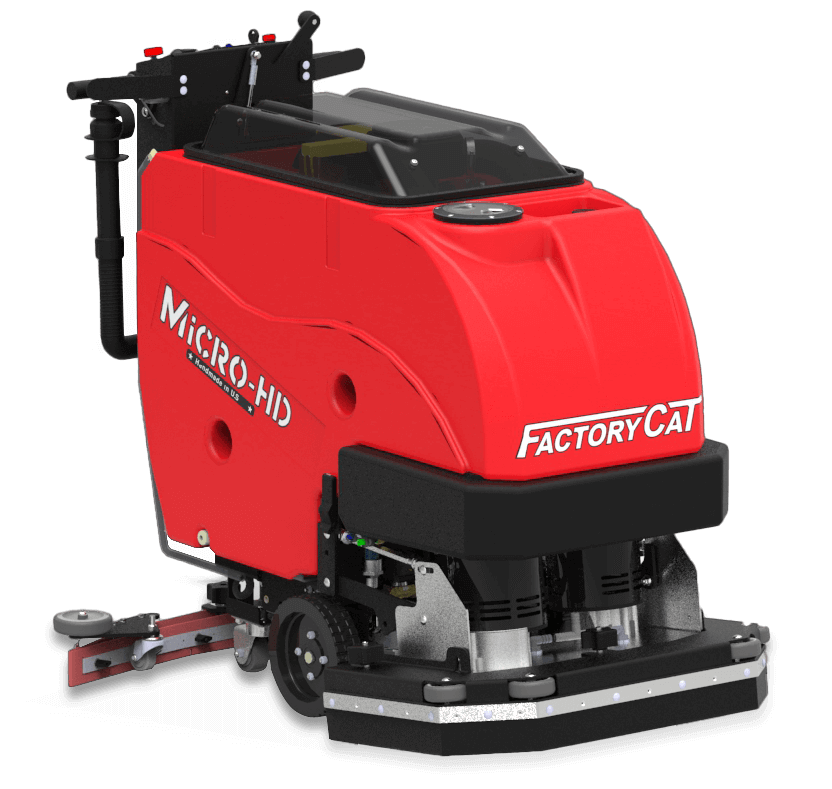

FactoryCat’s MICRO-HD Floor Scrubber Dryer is known for its simple design and durable construction, offering unmatched value for the customer. The MICRO-HD Walk Behind Floor Scrubber comes equipped with a Traction drive which includes a **powerful** all-gear transaxle for climbing ramps and max operator ease or a Pad Assist version.
While keeping with the constant durability that **FactoryCat** machines have to offer, your operators will find the MICRO-HD Floor Scrubber Dryer easy to maneuver into tight areas, and simple to service. The deck is protected by steel guards and large polyurethane rollers to keep the unit from marking walls.
Key Features
Machine Control Panel
uses off-the-shelf toggle and marine duty switches and features universal icons which simplifies training.
Vacuum Muffler
allows machine to consistently achieve industry low sound levels for noise sensitive applications while thoroughly drying the floor.
Squeegee Adjustments made simple
with quick change squeegee latch allows toolless maintenance and 4-sided squeegee blade.
Front Fill System
features a retractable hose for easy filling on standard sink-faucets and a stainless screen for bucket filling.
Oversized Vacuum Screen Shut-Off
quickly arrests overfill issues to protect the Vacuum Motor.
High Performance motors and down pressure
provides an unmatched standard of cleaning.
Technical Details
BODY CONSTRUCTION / DIMENSIONS
| Tank Material: | Poly 5/16'' (7.9 mm) |
| Chassis Construction: | 3/16'' Steel (4.8 mm) Powder Coated Steel |
| Front Wheels (Diameter × Width): | (2×) 8'' × 2'' ([2×] 20.3 × 5.1 cm) - Solid Black |
| Rear Casters (Diameter × Width): | (2×) 2.5'' × 1.38'' ([2×] 6.4 × 3.5 cm) - Non-Marking Grey |
| Size (L × W × H): | 45'' × 21'' × 39'' (114.3 × 53.3 × 99.1 cm) |
| Weight (w/o Batteries): | 278 - 328 lbs (126 - 149 kg) |
| Weight (w/ 130 ah Batteries): | 410 - 460 lbs (186 - 209 kg) |
BRUSH / PAD SYSTEM
| Disk Dimensions: | 17'' - (1×) 17'' Diameter (43.2 - [1×] 43.2 cm) 20'' - (1×) 20'' Diameter (50.8 - [1×] 50.8 cm) 26'' - (2×) 13'' Diameter (66.1 - [1×] 33 cm) |
| Disk Motor: | 17'' & 20'' - (1×) 0.75 hp / 200 rpm (43.2 & 50.8 cm [1×] 559 watts) 26'' - (2×) 0.75 hp / 270 rpm (66.1 cm [2×] 559 watts) |
| Disk Brush Speed: | 25'' - (2×) 6'' × 23'' (63.5 - [2×] 15.2 × 58.4 cm) |
| Cylindrical Motor: | (2×) 0.75 hp / 350 rpm ([2×] 559 watts) |
| Cylindrical Brush Speed: | 750 rpm |
| Brush Pressure Settings: | (5) with Auto Adjust |
| Brush Down Pressure: | Up to 125 lbs (57 kg) / 500 lbs (227 kg) Actuator Rating |
POWER SYSTEM
| System Voltage: | 24 VDC |
| Standard Battery: | 130 ah WET |
| Optional Battery: | 150 ah WET / 115 ah AGM* / 140 ah AGM* |
| Run Time: | Up to 2.5 Hours** |
| Charger: | 120VAC / 60 Hz Input - 24VDC / 12 amp Output |
DRIVE SYSTEM
| Power: | 0.75hp - All Gear / Sealed (559 watts) |
| Forward Speed: | 0 - 230 ft/min / 2.6 mph (0 - 70 m/min / 4 km/h) |
| Scrubbing Speed: | 0 - 184 ft/min / 2 mph (0 - 56 m/min / 3 km/h) |
| Reverse Speed: | 0 - 130 ft/min / 1.5 mph (0 - 40 m/min / 2 km/h) |
SOLUTION / RECOVERY SYSTEMS
| Solution Tank Capacity: | 13 Gallons (49.2 liters) - w/ Graduated Site Tube |
| Solution Flow / Filter: | 0 - 0.5 GPM / Stainless Inline (0 - 1.9 LPM) |
| Recovery Tank Capacity: | 15 Gallons (56.8 liters) - 1.5'' diameter Drain Hose |
| Demisting Chamber: | 1.25 Gallons (4.7 liters) |
| Drain Saver: | 30 cubic inches (492 cubic cm) |
| Vacuum Power: | 0.8 hp / 3 Stage (640 watts) |
| Vacuum Specs (Water Lift / Airflow): | 70'' / 70 cfm (178 cm / 2 cm/m) |
| Squeegee: | Curved w/ 4-sided Rear Blade & Quick Change Latch 17D, 20D - 33'' (83.8 cm) 25C, 26D - 36'' (91.4 cm) |
GENERAL
| Cleaning Width: | 17'', 20'' & 26'' - Disk (43.2, 50.8 & 66.1 cm) 25'' - Cylindrical (63.5 cm) |
| Sound Levels: | 62 dBA |
| Productivity - Theoretical: | Up to 27,027 sqft (2,511 sqm) |
| Productivity - Practical: | Up to 12,526 sqft |
