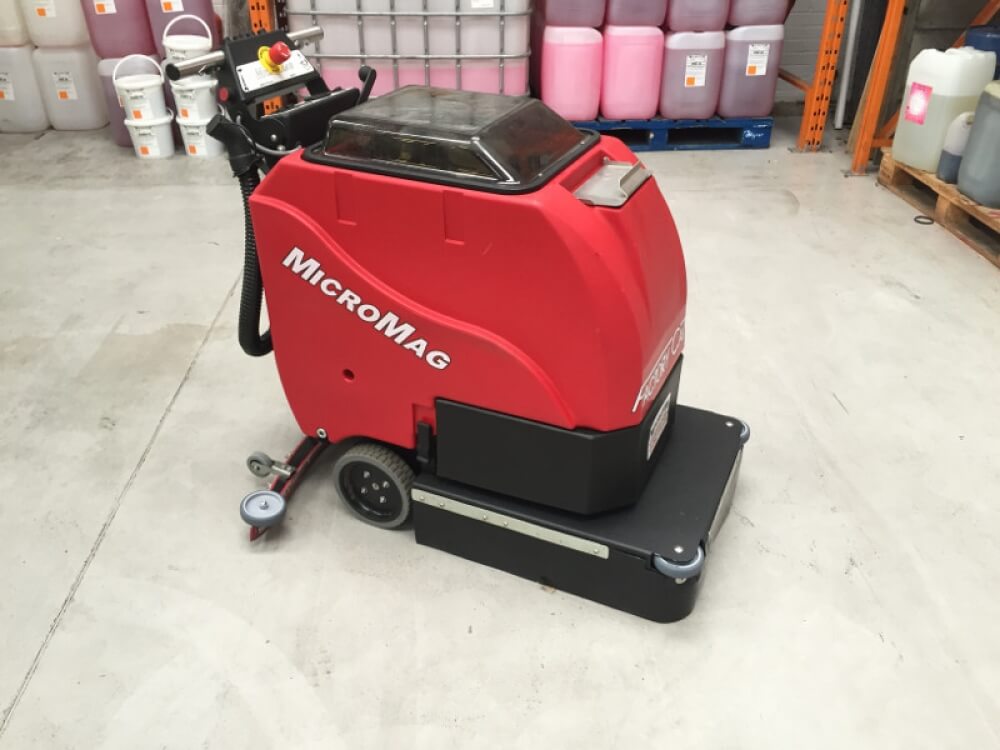

Factory Cat MicroMag
Machine Summary
Factory Cat’s MICROMAG Walk Behind Floor Scrubber Dryer was designed based off of our already well known MAGNUM and MINIMAG. Our goal with the MICROMAG Floor Scrubber is to have the smallest Walk Behind Floor Scrubber Dryer available without sacrificing on solution tank space or productivity in terms of scrubbing performance.
Factory Cat’s MICROMAG comes equipped with either a Brush-Assist drive which allows for operator ease with little-to-no pushing, or a Traction drive which includes a powerful all-gear transaxle for climbing ramps and max operator ease.
- The Brush-Assist drive is great for level surfaces and for a cheaper option in comparison to the Traction.
- The Traction drive offers unparalleled performance when climbing steep ramps and working on non-level surfaces.
While keeping with the constant durability that Factory Cat machines have to offer, your operators will find the MICROMAG Floor Scrubber Dryer easy to use, as there is an adjustable handlebar for all heights of operators, and easy to manoeuvre into tight areas. The deck is protected by a 10 gauge steel frame and polyurethane rollers to keep the unit from marking walls.
Key Features
Machine Control Panel
uses off-the-shelf toggle and marine duty switches and features universal icons which simplifies training.
Vacuum Muffler
allows machine to consistently achieve as low as 64 dBA while thoroughly drying the floor.
Squeegee Adjustments made simple
with simple wing-nuts allows for toolless maintenance of the squeegee blade.
Front Fill System
features a retractable hose for easy filling on standard sink faucets and a stainless screen for bucket filling.
Oversized Vacuum Screen Shut-Off
quickly arrests overfill issues to protect the Vacuum Motor.
High Performance motors and down pressure
provides an unmatched standard of cleaning.
Technical Details
BODY CONSTRUCTION / DIMENSIONS
| Tank Material: | Poly 5/16'' (7.9 mm) |
| Chassis Construction: | 1/8'' Steel (3.2 mm) Powder Coated Steel |
| Front Casters (Diameter × Width): | (2×) 2.5'' × 1.38'' ([2×] 6.4 × 3.5 cm) - Non-Marking Grey |
| Rear Wheels (Diameter × Width): | (2×) 8'' × 2'' ([2×] 20.3 × 5.1 cm) - Solid Black |
| Size (L × W × H): | 35'' × 18'' × 38'' (88.9 × 45.7 × 96.5 cm) |
| Weight (w/o Batteries): | 110 - 160 lbs (49.9 - 72.6 kg) |
| Weight (w/ 85 ah Batteries): | 290 - 340 lbs (131.5 - 154.2 kg) |
BRUSH / PAD SYSTEM
| Disk Dimensions: | 17'' - (1×) 17'' Diameter Brush (43.2 - [1×] 43.2 cm) |
| 20'' - (1×) 20'' Diameter Brushes (50.8 - [1×] 50.8 cm) | |
| Disk Motor: | (1×) 0.75 hp / 200 rpm (559 watts) |
| Disk Brush Speed: | 200 rpm |
| Optional Disk Motor: | (1×) 1.0 hp / 200 rpm (746 watts) |
| Brush Down Pressure: | Up to 100 lbs (45.4 kg) / 500 lbs (226.8 kg) Actuator Rating |
POWER SYSTEM
| System Voltage: | 24 VDC |
| Standard Battery: | 85 ah WET |
| Optional Battery: | 130 ah WET / 115 ah AGM |
| Run Time: | Up to 2.5 Hours |
| Charger: | 120VAC / 60 Hz Input - 24VDC / 8 amp Output |
DRIVE SYSTEM
| Power: | 0.75hp - All Gear / Sealed (559 watts) & Pad Assist |
| Forward Speed: | 0 - 230 ft/min / 2.6 mph (0 - 70 m/min / 4 km/h) |
| Scrubbing Speed: | 0 - 184 ft/min / 2 mph (0 - 56 m/min / 3 km/h) |
| Reverse Speed: | 0 - 130 ft/min / 1.5 mph (0 - 40 m/min / 2 km/h) |
SOLUTION / RECOVERY SYSTEMS
| Solution Tank Capacity: | 10 Gallons (37.9 liters) - w/ Graduated Site Tube |
| Solution Flow / Filter: | 0 - 0.5 GPM / Stainless Inline (0 - 2 LPM) |
| Recovery Tank Capacity: | 10 Gallons (37.9 liters) - 1.5'' diameter Drain Hose |
| Demisting Chamber: | 1.25 Gallons (4.7 liters) |
| Drain Saver: | 30 cubic inches (492 cubic cm) |
| Vacuum Power: | 0.8 hp / 3 Stage (640 watts) |
| Vacuum Specs (Water Lift / Airflow): | 70'' / 70 cfm (177.8 cm / 2 cm/m) |
| Squeegee: | Curved w/ 2-sided Rear Blade |
| 17D - 30'' (76.2 cm) | |
| 20D - 34''(86.36 cm) | |
| Optional - 26'' (66.04 cm) |
GENERAL
| Cleaning Width: | 17'' & 20'' - Disk (43 & 50.1 cm) |
| Sound Levels: | 64 dBA*** |
| Productivity - Theoretical: | Up to 15,748 sqft (1,463 sqm) |
| Productivity - Practical: | Up to 7,308 sqft |
