Factory Cat MicroMini
Machine Summary

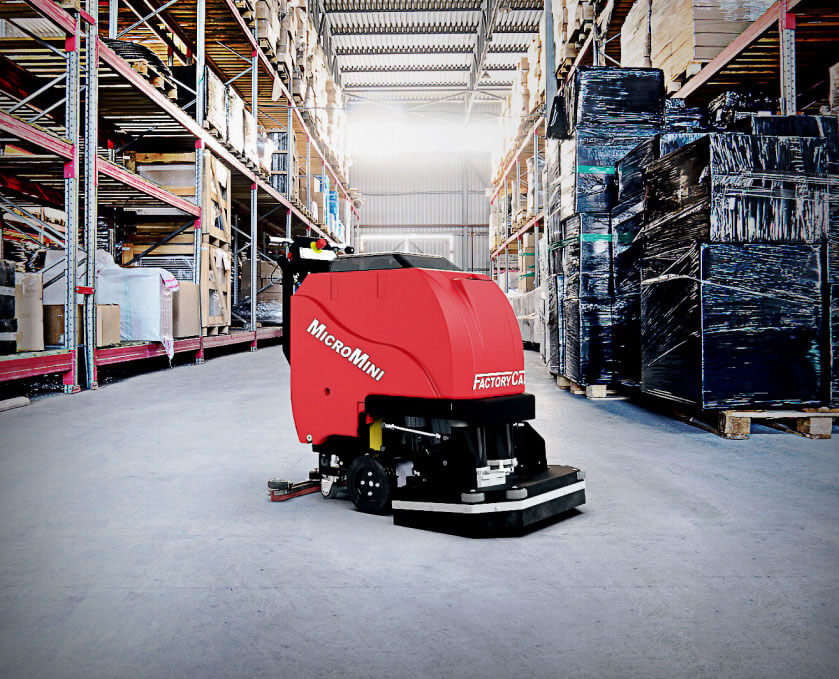

FactoryCat’s MICROMINI Floor Scrubber Dryer is known for its simple design and durable construction, offering unmatched value for the customer. The MICROMINI Walk Behind Floor Scrubber comes equipped with a Traction drive which includes a powerful all-gear transaxle for climbing ramps and max operator ease or a Pad Assist version.
While keeping with the constant durability that FactoryCat machines have to offer, your operators will find the MICROMINI Floor Scrubber Dryer easy to maneuver into tight areas, and simple to service. The deck is protected by steel guards and large polyurethane rollers to keep the unit from marking walls.
Key Features
Machine Control Panel
uses off-the-shelf toggle and marine duty switches and features universal icons which simplifies training.
Vacuum Muffler
allows machine to consistently achieve as low as 65 dBA while thoroughly drying the floor.
Squeegee Adjustments made simple
with simple wing-nuts allows for toolless maintenance of the squeegee blade.
Front Fill System
features a retractable hose for easy filling on standard sink-faucets and a stainless screen for bucket filling.
Oversized Vacuum Screen Shut-Off
quickly arrests overfill issues to protect the Vacuum Motor.
High Performance motors and down pressure
provides an unmatched standard of cleaning.
Technical Details
BODY CONSTRUCTION / DIMENSIONS
| Tank Material: | Poly 5/16'' (7.9 mm) |
| Chassis Construction: | 1/8'' Steel (3.2 mm) Powder Coated Steel |
| Front Wheels (Diameter × Width): | (2×) 8'' × 2'' ([2×] 20.3 × 5.1 cm) - Solid Black |
| Rear Casters (Diameter × Width): | (2×) 2.5'' × 1.38'' ([2×] 6.4 × 3.5 cm) - Non-Marking Grey |
| Size (L × W × H): | 42'' × 21'' × 39'' (106.7 × 53.3 × 99.1 cm) |
| Weight (w/o Batteries): | 215 - 315 lbs (97.5 - 142.9 kg) |
| Weight (w/ 130 ah Batteries): | 380 - 480 lbs (172.4 - 217.7 kg) |
BRUSH / PAD SYSTEM
| Disk Dimensions: Includes Shroud for Wall Protection | |
| 17'' - (1×) 17'' Ø (43.2 - [1×] 43.2 cm) | |
| 20'' - (1×) 20'' Ø (50.8 - [1×] 50.8 cm) | |
| 26'' - (2×) 13'' Ø (66.1 - [2×] 33.1 cm) | |
| Disk Motor: | 0.75 hp / 200 rpm ([1×] 559 watts) |
| Disk Brush Speed: | 200 rpm |
| Brush Down Pressure: | Up to 100 lbs (45.4 kg) / 500 lbs (226.8 kg) Actuator Rating |
POWER SYSTEM
| System Voltage: | 24 VDC |
| Standard Battery: | 130 ah WET |
| Optional Battery: | 150 ah WET / 115 ah AGM |
| Run Time: *Run times are based on continuous scrubbing run times. | Up to 3.5 Hours* |
| Charger: | 120VAC / 60 Hz Input - 24VDC / 12 amp Output |
DRIVE SYSTEM:
| Power | 0.75hp - All Gear / Sealed (559 watts) & Pad Assist |
| Forward Speed: | 0 - 230 ft/min / 2.6 mph (0 - 70 m/min / 4 km/h) |
| Scrubbing Speed: | 0 - 184 ft/min / 2 mph (0 - 56 m/min / 3 km/h) |
| Reverse Speed: | 0 - 130 ft/min / 1.5 mph (0 - 40 m/min / 2 km/h) |
SOLUTION / RECOVERY SYSTEMS:
| Solution Tank Capacity: | 10 Gallons (37.9 liters) - w/ Graduated Site Tube |
| Solution Flow / Filter: | 0 - 0.5 GPM / Stainless Inline (0 - 2 LPM) |
| Recovery Tank Capacity: | 10 Gallons (37.9 liters) - 1.5'' diameter Drain Hose |
| Demisting Chamber: | 1.25 Gallons (4.7 liters) |
| Drain Saver: | 30 cubic inches (491.6 cubic cm) |
| Vacuum Power: | 0.8 hp / 3 Stage (640 watts) |
| Vacuum Specs (Water Lift / Airflow): | 70'' / 70 cfm (177.8 cm / 2 cm/m) |
| Squeegee: | Curved w/ 2-sided Rear Blade |
| 17D - 30'' (76.2 cm) | |
| 20D & 26D - 34''(86.4 cm) | |
| Optional - 26'' & 34'' (66 cm & 86.4 cm) |
GENERAL:
| Cleaning Width: | 17'', 20'', 26'' - Disk (43 & 50.1, 66.1 cm) |
| Sound Levels: **Decibel levels for Disk per ISO 11201 as recommended by the American Association of Cleaning Equipment Manufacturers & OSHA | 65 dBA** |
| Productivity - Theoretical: ***Productivity is based off of ISSA 2010 Cleaning Times | Up to 15,748 sqft (1,463 sqm)*** |
| Productivity - Practical: ***Productivity is based off of ISSA 2010 Cleaning Times | Up to 7,308 sqft (679 sqm)*** |
