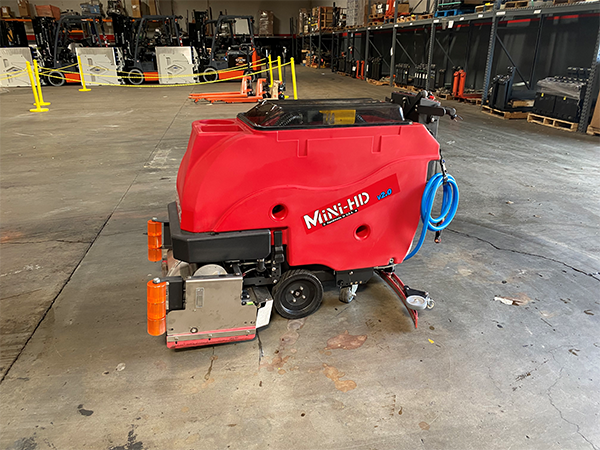

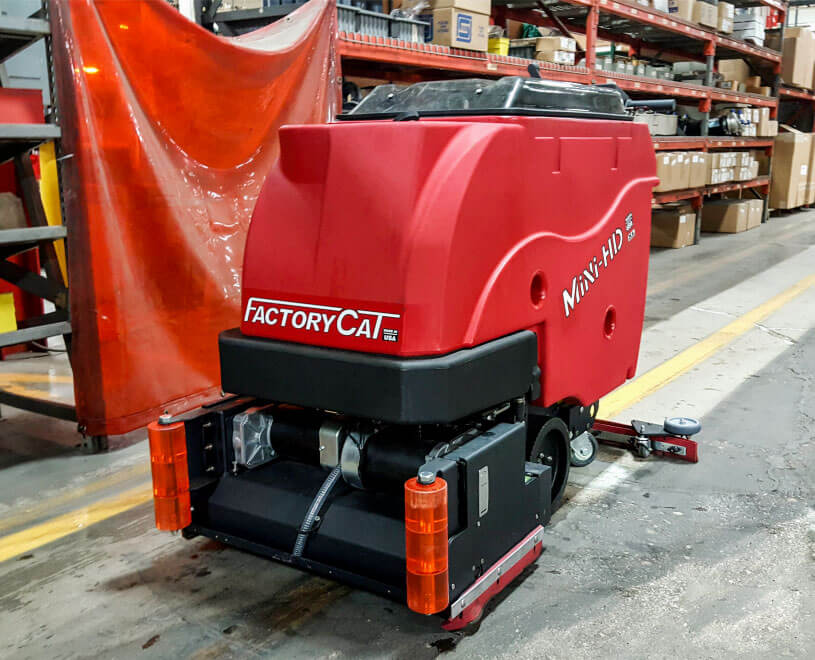

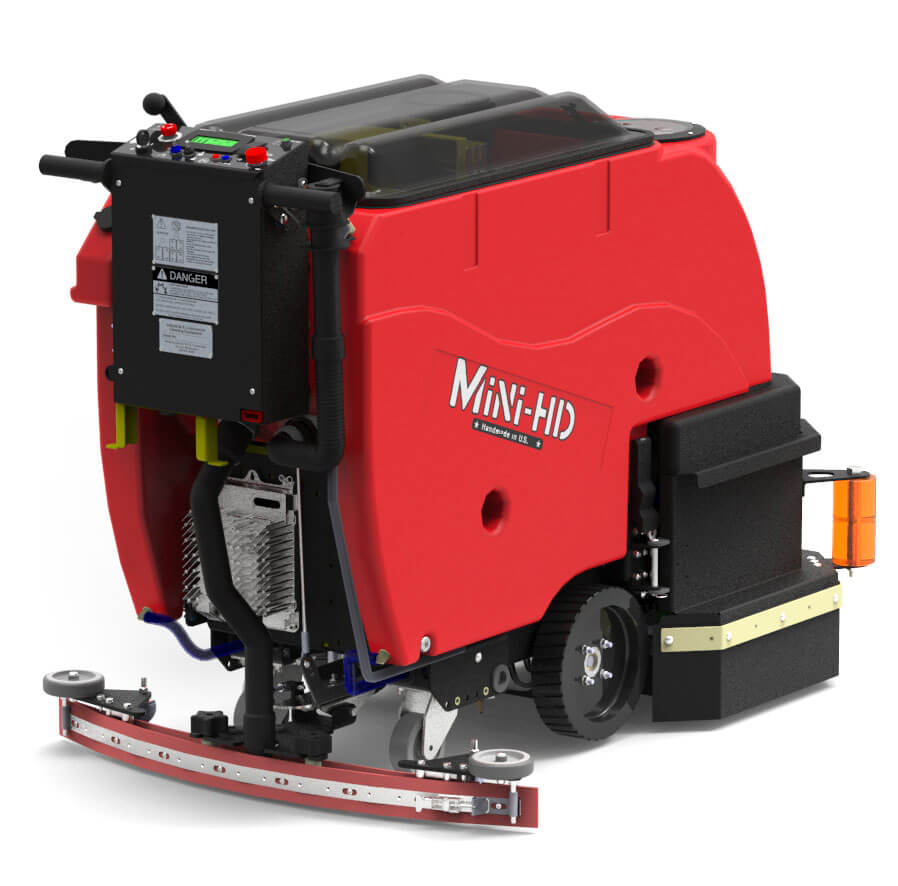

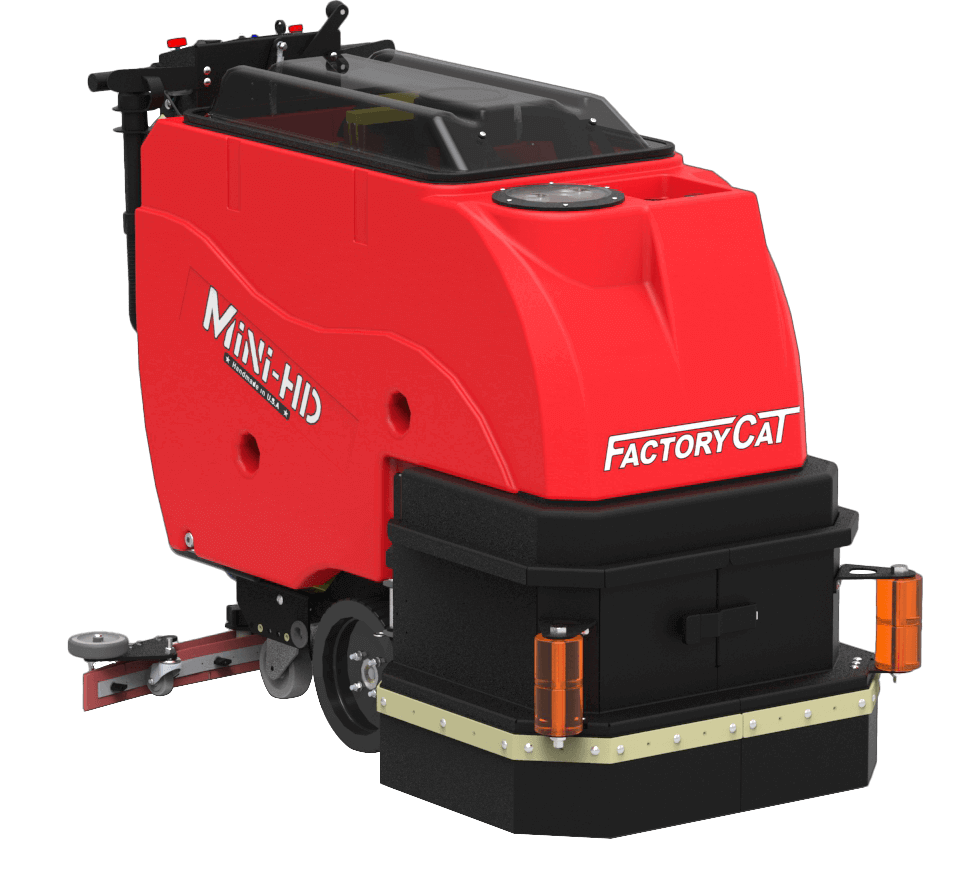

Factory Cat Mini-HD
Machine Summary
Factory Cat’s MINI-HD Floor Scrubber Dryer is known for its simple design and durable construction, offering unmatched value for the customer. The MINI-HD Walk Behind Floor Scrubber comes equipped with a Traction drive which includes a **powerful** all-gear transaxle for climbing ramps and max operator ease.
While keeping with the constant durability that **Factory Cat** machines have to offer, your operators will find the MINI-HD Floor Scrubber Dryer easy to maneuver into tight areas, and simple to service. The deck is protected by steel guards and large polyurethane rollers to keep the unit from marking walls.
Key Features
Machine Control Panel
uses off-the-shelf toggle and marine duty switches and features universal icons which simplifies training.
Vacuum Muffler
allows machine to consistently achieve as low as 62 dB while thoroughly drying the floor.
Squeegee Adjustments made simple
with quick change squeegee latch allows toolless maintenance and 4-sided squeegee blade.
Front Fill System
features a retractable hose for easy filling on standard sink-faucets and a stainless screen for bucket filling.
Oversized Vacuum Screen Shut-Off
quickly arrests overfill issues to protect the Vacuum Motor.
High Performance motors and down pressure
provides an unmatched standard of cleaning.
Technical Details
Body Construction / Dimensions
| Tank Material | Poly 3/8'' (9.5 mm) |
| Chassis Construction | 3/16'' (4.8 mm) Powder Coated Steel |
| Front Wheels (Diameter × Width) | (2×) 10'' × 2.5'' ([2×] 25.4 × 6.4 cm) - Solid Black |
| Rear Casters (Diameter × Width) | (2×) 4'' × 2'' ([2×] 10.2 × 5.1 cm) - Non-Marking Grey |
| Size (L × W × H): | 52'' × 22'' × 40'' (132.1 × 55.9 × 101.6 cm) |
| Weight (w/o Batteries): | 393 - 443 lbs (178 - 201 kg) |
| Weight (w/ 210 ah Batteries) | 625 - 675 lbs (284 - 306 kg) |
Brush / Pad System
| Disk Dimensions | 26'' - (2×) 13'' Diameter (66 - [2×] 33 cm) |
| 28'' - (2×) 14'' Diameter (71.1 - [2×] 35.6 cm) | |
| Disk Motor | (2×) 0.75 hp / 270 rpm ([2×] 559 watts) |
| Optional Motor Upgrade | (2×) 1.0 hp / 350 rpm ([2×] 746 watts) |
| Disk Brush Speed | 270 rpm or 350 rpm |
| Cylindrical Dimensions | 25'' - (2×) 6'' × 23'' (63.5 - [2×] 15.2 × 58.4 cm) |
| 29'' - (2×) 6'' × 27'' (73.7 - [2×] 15.2 × 68.6 cm) | |
| Cylindrical Motor | 25'' - (2×) 0.75 hp / 350 rpm ([2×] 559 watts) |
| 29'' - (2×) 1.0 hp / 350 rpm ([2×] 746 watts) | |
| Cylindrical Brush Speed | 750 rpm |
| Brush Pressure Settings | (5) with Auto Adjust |
| Brush Down Pressure | Up to 175 lbs (79 kg) / 500 lbs (227 kg) Actuator Rating |
Power System
| System Voltage | 24 VDC |
| Standard Battery | 210 ah WET |
| Optional Battery *Includes Onboard Charger | 245 ah WET / 250 ah AGM* |
| Run Time: **Run times are based on continuous scrubbing run times. | Up to 3.5 Hours** |
| Charger | 120VAC / 60 Hz Input - 24VDC / 25 amp Output |
Drive System
| Power | 0.75hp - All Gear / Sealed (559 watts) |
| Forward Speed | 0 - 290 ft/min / 0 - 3.3 mph (0 - 88 m/min / 0 - 5 km/h) |
| Scrubbing Speed | 0 - 229 ft/min / 0 - 2.6 mph (0 - 70 m/min / 0 - 4 km/h) |
| Reverse Speed | 0 - 202 ft/min / 0 - 2.3 mph (0 - 62 m/min / 0 - 4 km/h) |
Solution / Recovery Systems
| XL Tank Solution Capacity | 21 Gallons (79.5 liters) - w/ Graduated Site Tube |
| Solution Flow / Filter | 0 - 0.7 GPM / Stainless Inline (0 - 2 LPM) |
| XL Tank Recovery Capacity | 23 Gallons (87.1 liters) - 1.5'' diameter Drain Hose |
| Optional Small Tank Capacity | 16 Gal (60.6 liters) Solution / 17 Gal (64.4 liters) Recovery |
| Demisting Chamber | 1.25 Gallons (4.7 liters) |
| Drain Saver | 30 cubic inches (492 cubic cm) |
| Vacuum Power | 0.8 hp / 3 Stage (640 watts) |
| Vacuum Specs (Water Lift / Airflow) | 68'' / 72 cfm (173 cm / 2 cm/m) |
| Squeegee | Curved w/ 4-sided Rear Blade & Quick Change Latch |
| 25C, 26D - 36'' (91.4 cm) | |
| 28D, 29C - 39'' (99.1 cm) | |
| Optional - 33'' & 42'' (83.8, 106.7 cm) |
General
| Cleaning Width | 26'' & 28'' - Disk (66 & 71.1 cm) |
| 25'' & 29'' - Cylindrical (63.5 & 73.7 cm) | |
| Productivity - Theoretical | Up to 27,027 sqft (2,511 sqm)*** |
| ***Productivity is based off of ISSA 2010 Cleaning Times | |
| Productivity - Practical | Up to 12,526 sqft (1,164 sqm)*** |
| ***Productivity is based off of ISSA 2010 Cleaning Times |
