Factory Cat Model TR

Factory Cat Model TR

Cleaning Width
46'' (117 cm)
Hopper Capacity
4.2 cubic ft. (116 liters)

Lease

Flexible 12 to 60 month lease options

Purchase

For questions, call 01282 416139

Machine Summary

Factory Cat’s Floor Sweepers are built to sweep factories: dirt, dust, metal shavings, foundry sand, bolts, paper, wood, whatever there is.

The Factory Cat model TR’s design was built from the success of our Model 34 walk behind sweeper. The TR’s side brooms sweep up dirt in the corners, while a huge tubular sweeping broom under the machine sweeps up the dirt and debris from the floor and packs it into the steel hopper. Meanwhile, the second stage vacuums up the dust and traps it in a polypropylene felt “baghouse” filter. Factory Cat’s Industrial floor sweepers can pick up whole bags of cement at a time without leaving a trace of dust behind.

– With built in side-brooms, this Ride-on unit is able to pick up dust and dirt from cracks normally unreachable.
– This Rider Floor Sweeper has built a built in dust-control filtration system to make dust control a worry of the past.
– All of Factory Cat’s Industrial Floor Sweepers work at a very low decibel to allow for sweeping during the normal business hours.

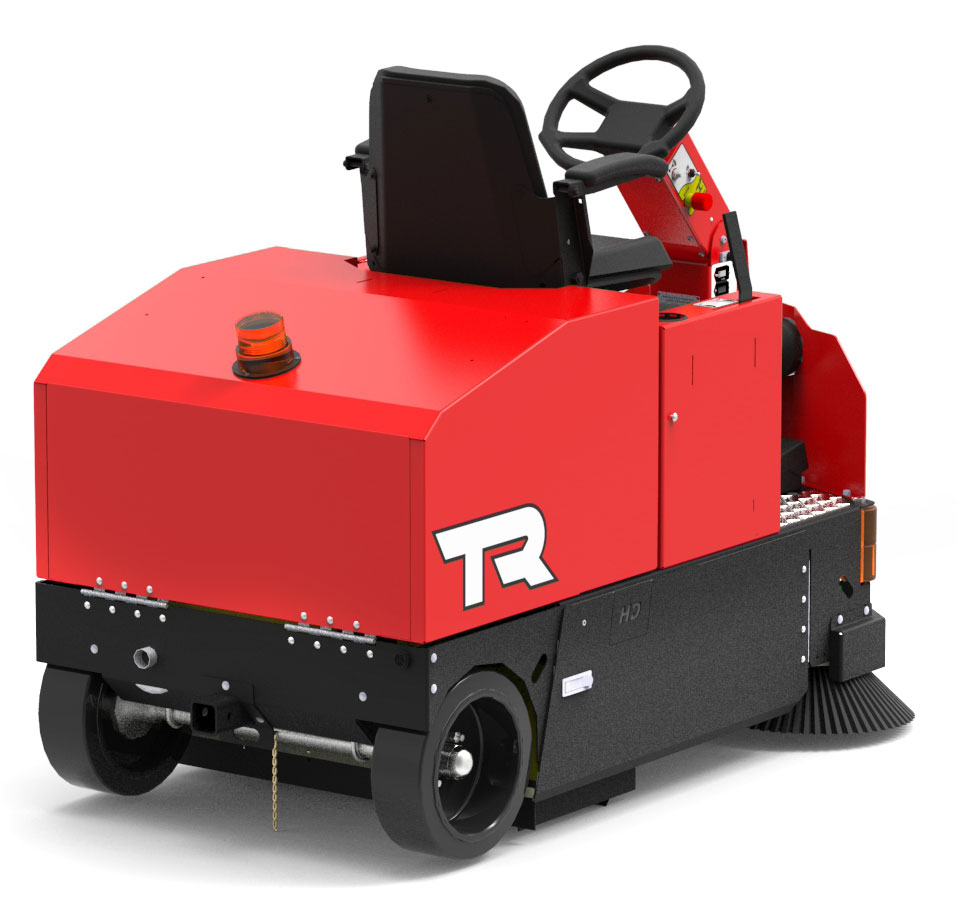

FactoryCat TR ride on sweeper

Key Features

filter icon
Baghouse Filter and Beater Bar

Provides unmatched particulate collection. Sweepers can pick up whole bags of cement at a time. In most cases the filter will last the lifetime of the machine.

easy maintenance icon
Maintenance is a Snap

There's no oil to change, brooms to reverse, fuel to spill, tanks to exchange, valves to grind. Just put the machine on charge after every shift.

all steel construction icon
All Steel Construction

Built to last even in the toughest applications. Able to withstand years of abuse.

save time icon
Time is Money

Monthly labor savings reach thousands when you sweep with our 34 or TR.

high performance icon
High Performance Motors

Provides an unmatched standard of cleaning.

0 point turns icon
0 Point Turns

For no nonsense mobility. This gives the control and accuracy needed for heavy industrial cleaning without missing a spot.

Technical Details

Chassis Construction3/16'' (5 mm) Powder Coated Steel
Front Wheel (Diameter × Width)10'' × 3'' (25 × 8 cm) - Solid Black
Rear Wheels (Diameter × Width)(2×) 14'' × 5'' ([2×] 36 × 13 cm) - Solid Black
Size (L × W × H)64'' × 37'' × 50'' (163 × 94 × 140 cm)
Weight (w/o Batteries)825 - 875 lbs (374 - 397 kg)t
Weight (w/ Standard Batteries)1,115 - 1,165 lbs (506 - 528 kg)
Sweeping MethodDirect Throw
Broom (Diameter × Length)10'' × 32'' (25 × 81 cm)
Broom Power / Speed1.0 hp / 435 rpm (746 watts)
Side Broom Size(2×) 17'' ([2×] 43 cm)
Side Broom Power / Speed(2×) 0.3 hp / 100 rpm (224 watts)
Hopper Capacity4.2 cubic ft. (116 liters)
System Voltage24 VDC
Standard Battery: Includes Onboard Charger**240 ah WET
Optional Battery325 ah WET / 420 ah WET / 250 ah AGM / 390 ah AGM
Run Time: **Run times are based on continuous sweeping run times.**Up to 5 Hours
Charger120VAC / 60 Hz Input - 24 VDC / 37A Output
Power2.0 hp - All Gear / Sealed (1491 watts)
Speed Control0 - 308 ft/min / 0 - 3.5 mph (0 - 93.9 m/min / 0 - 5.6 km/h)
Filtering MaterialPolymer Felt/Baghouse
Filter Rating1 Micron
Size5,192 sq. inches (3.35 sqm)
Vacuum Specs (Airflow)280 cfm
Cleaning Width46'' (117 cm)
Decibels: ***Decibel levels per ISO 11201 as recommended by the American Association of Cleaning Equipment Manufacturers & OSHA65 dB***
Productivity - Theoretical: ****Productivity is based off of ISSA 2010 Cleaning TimesUp to 75,000 sqft (6,968 sqm)****
Productivity - Practical: ****Productivity is based off of ISSA 2010 Cleaning TimesUp to 59,406 sqft (5,519 sqm)****
factory cat TR sweeper back right
