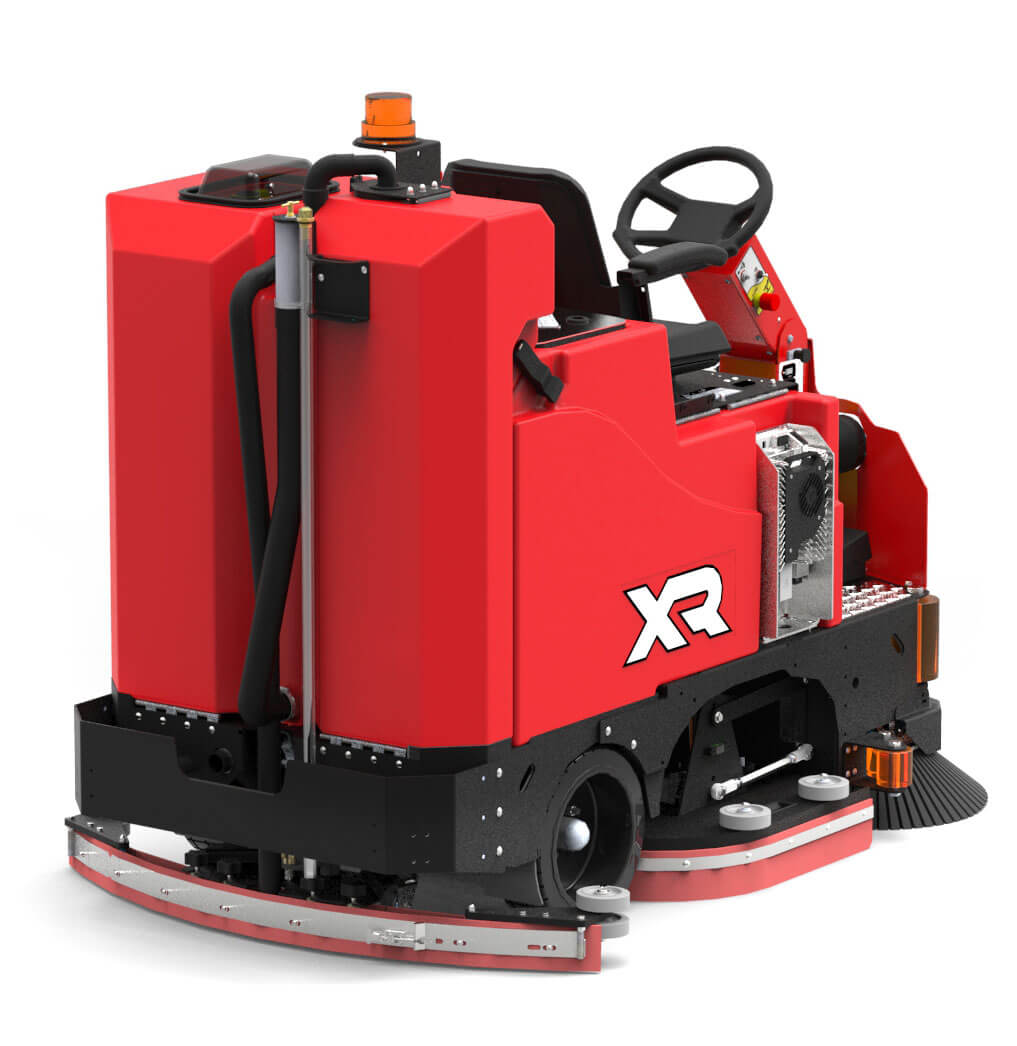

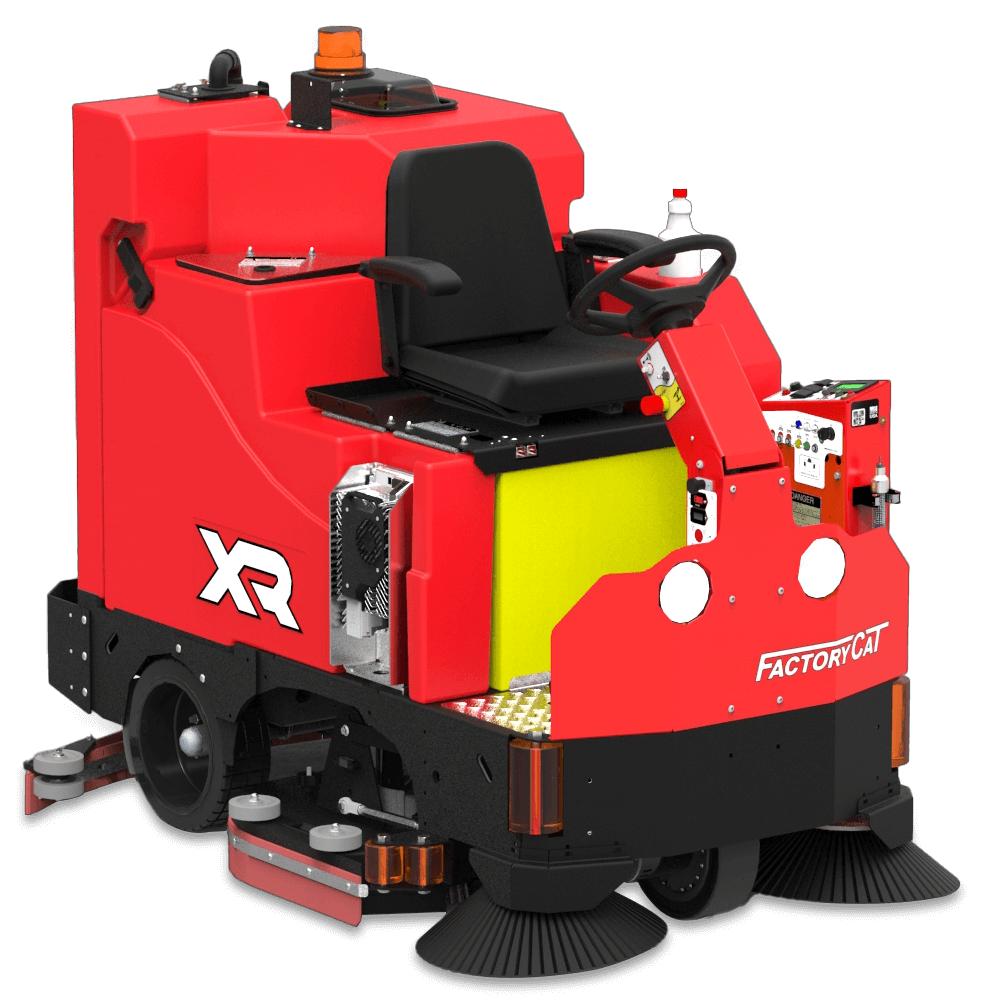

Factory Cat XR
Machine Summary
Factory Cat’s XR Rider Floor Scrubber Dryers are tough, compact scrubbers that offer the great productivity of Rider machines but with better maneuverability than Walk Behinds. The Factory Cat XR Rider Floor Scrubbers have a powerful drive motor that can climb steep ramps and comes standard with heavy duty tires. Features of the drive system include: automatic parking brake and reducing of transport speed while scrubbing or reversing to maintain life of the squeegees.
The Central Command II systems on all of our Rider Scrubbers include: a LCD readout, on-board machine diagnostics, and 3 different hour meters. Also, if machine batteries become too discharged, the XR automatically shut down all systems except “transport”, enabling the operator to still make it back to the charge station.
Key Features
Machine Control Panel
uses off-the-shelf toggle and marine duty switches and features universal icons which simplifies training.
Vacuum Muffler
allows machine to consistently achieve as low as 67 dB while thoroughly drying the floor.
Squeegee Adjustments made simple
with quick change squeegee latch allows toolless maintenance and 4-sided squeegee blade.
Fill System
features a recessed trough with removeable stainless screen for easy bucket filling as well as a hose lock notch.
Oversized Vacuum Screen Shut-Off
quickly arrests overfill issues to protect the Vacuum Motor.
High Performance motors and down pressure
provides an unmatched standard of cleaning.
Technical Details
BODY CONSTRUCTION / DIMENSIONS
| Tank Materia | Poly 3/8'' (9.5 mm) |
| Chassis Construction | 3/16'' Steel (4.8 mm) Powder Coated Steel |
| Front Wheel (Diameter × Width) | 12'' × 4'' (30.5 × 10.2 cm) - Solid Black |
| Rear Wheels (Diameter × Width) | (2×) 14'' × 5'' ([2×] 35.6 × 12.7 cm) - Solid Black |
| Size (L × W × H) | 69'' × 36'' × 56'' (175.3 × 91.4 × 142.2 cm) |
| Weight (w/o Batteries) | 1,200 - 1,250 lbs (544 - 567 kg) |
| Weight (w/ 325 ah Batteries) | 1,925 - 1,975 lbs (873 - 896 kg) |
BRUSH / PAD SYSTEM
| Disk Dimensions | 34'' - (2×) 17'' Diameter (86.4 - [2×] 43.2 cm) |
| 40'' - (2×) 20'' Diameter (101.6 - [2×] 50.8 cm) | |
| 45'' - (2×) 23'' Diameter (114.3 - [2×] 58.4 cm) | |
| Disk Motor | (2×) 1.0 hp ([2×] 746 watts) |
| Disk Brush Speed | 200 rpm |
| Cylindrical Dimensions | 34'' - (2×) 7'' × 32'' (86.4 - [2×] 17.8 × 81.3 cm) |
| 40'' - (2×) 7'' × 38'' (101.6 - [2×] 17.8 × 96.5 cm) | |
| 46'' - (2×) 7'' × 44'' (116.8 - [2×] 17.8 × 111.8 cm) | |
| Cylindrical Motor | (2×) 1.5 hp / 350 rpm ([2×] 1,119 watts) |
| Cylindrical Brush Speed | 750 rpm |
| Brush Pressure Settings | (5) with Auto Adjust |
| Brush Down Pressure | Up to 250 lbs (113 kg) / 500 lbs (227 kg) Actuator Rating |
POWER SYSTEM
| System Voltage | 36 VDC |
| Standard Battery | 325 ah WET |
| Optional Battery | 425 ah WET / 440 ah Industrial / 400 ah AGM |
| Run Time | Up to 5.0 Hours* |
| *Run times are based on continuous scrubbing run times. | |
| Charger | 120VAC / 60 Hz Input - 36VDC / 30 amp Output |
DRIVE SYSTEM
| Power | 3.0 hp - All Gear / Sealed (2,237 watts) |
| Forward Speed | 0 - 320 ft/min / 0 - 3.6 mph (0 - 98 m/min / 0 - 6 km/h) |
| Scrubbing Speed | 0 - 256 ft/min / 0 - 2.9 mph (0 - 78 m/min / 0 - 5 km/h) |
| Reverse Speed | 0 - 230 ft/min / 0 - 2.6 mph (0 - 70 m/min / 0 - 4 km/h) |
SOLUTION / RECOVERY SYSTEMS
| Solution Tank Capacity | 65 Gallons (246.1 liters) - w/ Graduated Site Tube |
| Solution Flow / Filter | 0 - 1.0 GPM / Stainless Inline (0 - 3.7 LPM) |
| Recovery Tank Capacity | 78 Gallons (295.3 liters) - 2'' (5.08 cm) diameter Drain Hose |
| Demisting Chamber | 1.25 Gallons (4.7 liters) |
| Drain Saver | 30 cubic inches (492 cubic cm) |
| Vacuum Power | (2×) 1.0 hp / 3 Stage (740 watts) |
| Vacuum Specs (Water Lift / Airflow) | 70'' / 140 cfm (177.8 cm / 4 cm/m) |
| Vacuum Specs (Water Lift / Airflow) | 70'' / 140 cfm (177.8 cm / 4 cm/m) |
| Squeegee | Curved w/ 4-sided Rear Blade & Quick Change Latch |
| 34D & 34C - 46'' (116.8 cm) | |
| 40D & 40C - 53'' (134.6 cm) | |
| 45D & 46C - 60'' (152.4 cm) |
GENERAL
| Cleaning Width | 34'', 40'', & 45'' - Disk (86.4, 101.6, 114.3 cm) |
| 34'', 40'', & 46'' - Cylindrical (86.4, 101.6, 116.8 cm) | |
| Decibels | 67 dB |
| Productivity - Theoretical | Up to 49,587 sqft (4,607 sqm)** |
| Productivity - Practical | Up to 22,989 sqft (2,136 sqm)** |
| **Productivity is based off of ISSA 2010 Cleaning Times |
