EHRLE KW Series
Power Consumption
6.5kW / 9hp
Max. Inlet temperature
45 °C
Pump speed
1000rpm
Models Available:
KW1200 P.T.O. driven

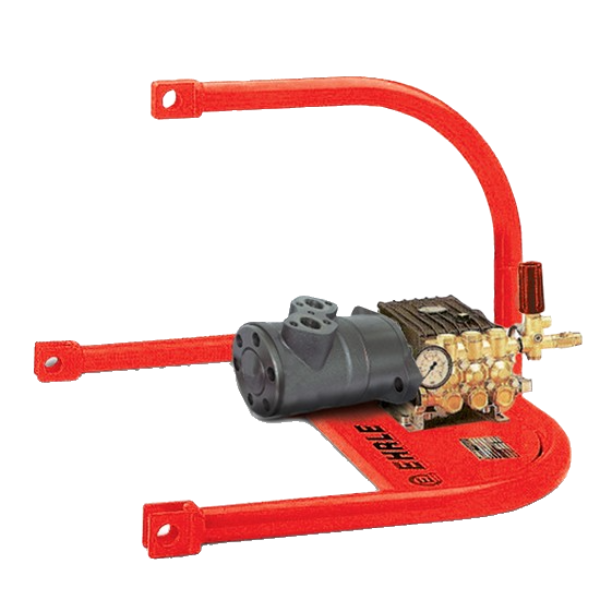

KW1200 Hydraulic-driven
Standard Features
Robust
Corrosion-resistant, self-supporting device-plate for mounting size 3, made of robust steel pipe galvanized and powder-coated
High-performance piston
Triplex-piston pump with brass pump head, high-performance ceramic piston and stainless-steel valves
Unloader safety-valve
Comes with infinitely variable pressure and quantity regulation and safety-valve
PTO Hydraulic drive
Supply line DN12 with coupling size GR3 - backflow DN16 with coupling size GR3 (pressureless)
Technical Details
KW1200 P.T.O. DRIVEN
| Drive | P.T.O. Shaft: 525rpm - i: 1:1,9 |
| Power Consumption | 6.5kW / 9hp |
| Mounting / Connection | Plate Size 3 - P.T.O. 1 3/8" |
| Operating pressure | 30-180bar / 3-18MPa |
| Max. pressure | 200bar / 20Mpa |
| Discharge capacity | 300 - 1000l/h |
| Nozzle size | 050 |
| Max. Inlet temperature | 45°C |
| Pump speed | 1000 rpm |
KW1200 HYDRAULIC DRIVEN
| Drive | Hydraulic Power: 36l/min @ 180bar |
| Power Consumption | 11kW / 15hp |
| Mounting / Connection | 2m DN16/BG3 - DN12/BG3 |
| Operating pressure | 30-180bar / 3-18MPa |
| Max. pressure | 200bar / 20Mpa |
| Discharge capacity | 300 - 1000l/h |
| Nozzle size | 050 |
| Max. Inlet temperature | 45°C |
| Pump speed | 1000 rpm |
