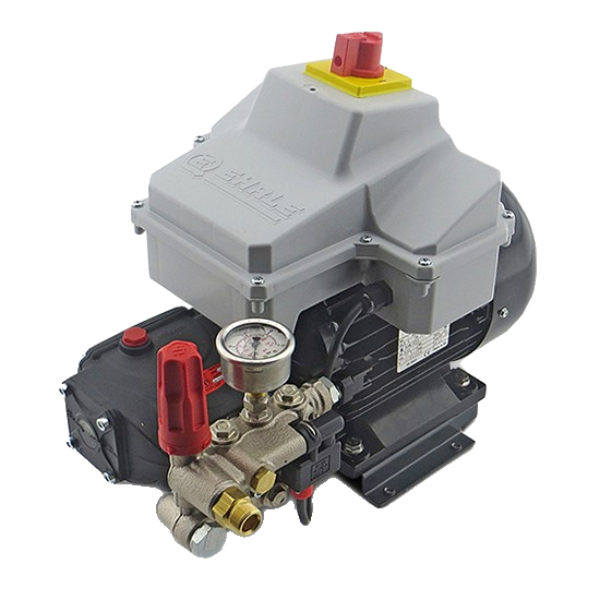

EHRLE Motor Pump Units
Length x width x height
480x335x335 mm / 600x400x500 mm
Max. Inlet temperature
80°C
Pump speed
1400 rpm
Models Available:
MP823 UK
MP1140
Standard Features
Total switch off
after 20min with leakage-recognition
High-performance piston
Triplex piston pump with brass pump head, high-performance ceramic piston
Unloader safety valve
Comes with infinitely variable pressure and quantity regulation
Technical Details
MP 823 UK
| Voltage | 230 V |
| Frequency | 50 \hz |
| Operating pressure | 30-120bar/ 3-13MPa |
| Max. Pressure | 140bar/ 14MPa |
| Discharge Capacity | 300 - 720l/h |
| Nozzle size | 050 |
| Max. Inlet temperature | 80 °C |
| Pump speed | 1400 rpm |
| Connected load | 2.9kW / 12.8A |
| Electrical option | 16A träge |
| Weight | 54 kg |
| Length x width x height | 480x335x335 mm |
MP 1140
| Voltage | 3 / 400–415 V |
| Frequency | 50 Hz |
| Operating pressure | 30-180 bar / 3-18 MPa |
| Max. Pressure | 200 bar / 20 MPa |
| Discharge Capacity | 300-1000 l/h |
| Nozzle size | 050 |
| Max. Inlet temperature | 80 °C |
| Pump speed | 1400 rpm |
| Connected load | 6.5 kW / 11.7 A |
| Electrical option | 3x16 A slow-blowing |
| Weight | 54 kg |
| Length x width x height | 715x415x380 mm |
