Avidbots NEO 2

Type

Robotic Floor Scrubber Dryers

Scrubbers

Cylindrical / 24'' - 32''

Run-Time

4 – 6 hours

Hire

Flexible hire options available

Get A Quote

Purchase

Get A Quote

For questions, call 01282 416139

Machine Summary

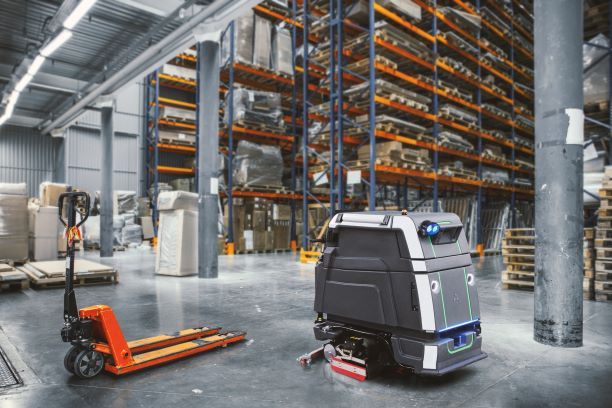

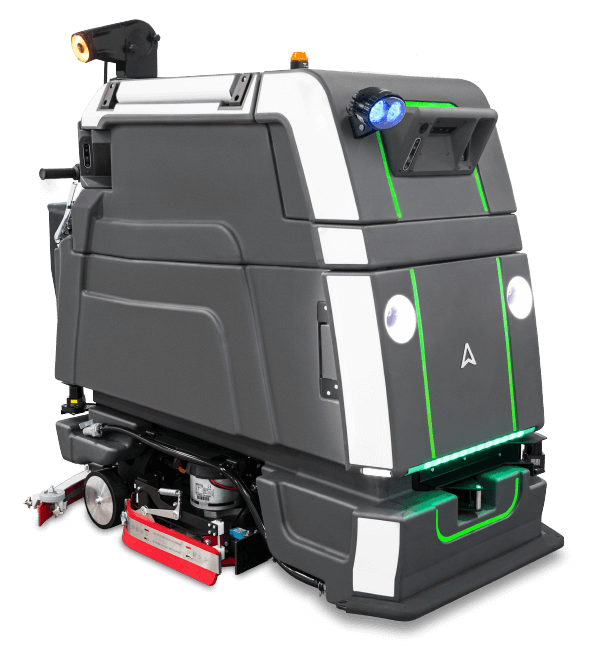

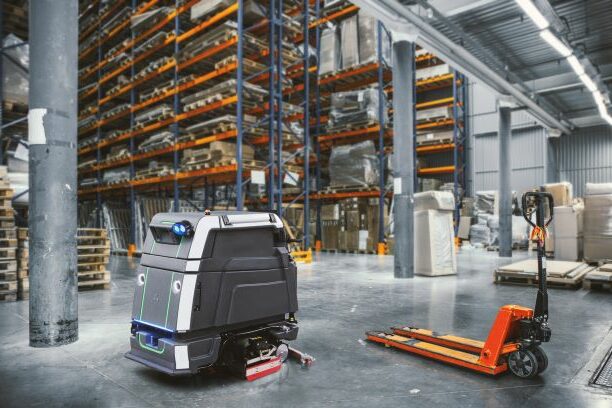

Neo by Avidbots is a fully autonomous floor scrubbing robot, ideally suited for a wide range of industrial and commercial environments. Neo takes care of the floors allowing your workforce to focus on more value adding tasks.

Technical Details

PHYSICAL

Length	26'' - 1,516 mm / 59.7 in
	32'' - 1,516 mm / 59.7 in
Width	26'' - 760 mm / 29.9 in
	32'' - 891 mm / 35.1 in
Height	26'' - 1,374 mm / 53.1 in
	32'' - 1,374 mm / 53.1 in
Gross Vehicle Weight (GVW)	26'' - 661 kg / 1,457 lbs*
	32'' - 669 kg / 1,474 lbs*
Empty Weight	26'' - 283 kg / 624 lbs

*Includes batteries, and full cleaning solution tank

CLEANING

Total Pad / Brush Width	26'' - 660 mm / 26 in
	32'' - 822 mm / 32 in
Nominal Pad / Brush Diameter	26'' - 330 mm / 13 in
	32'' - 411 mm / 16 in
Squeegee Assembly Width	26'' - 907 mm / 35.7 in
	32'' - 1,066 mm / 42.0 in
Rotating Speed of Pads, Brushes & Brooms	26'' - 350 RPM
	32'' - 350 RPM
Recovery Tank Capacity	26'' - 135 L / 35.7 gal
	32'' - 135 L / 35.7 gal
Solution Tank Capacity	26'' - 109 L / 28.8 gal
	32'' - 109 L / 28.8 gal
Maximum Theoretical Productivity	26'' - 3,120 m2 / hour.
	32'' - 3,850 m2 / hour.

VACUUM

Vacuum Suction

26 / 32'' - 15 kPa / 60.5 inH20

MOVEMENT

Minimum Aisle Turn-Around Width (Autonomous)	26 / 32'' - 3.05 m (120 in)**
Maximum Working Mode Speed	26 / 32'' - 4.9 km/h / 3.0 mph
Maximum Scrubbing Grade	26 / 32'' - 3% / 2°

AUDIO

Operating Sound Pressure Level	26 / 32'' - 75 dB(A)
Maximum Audio System Sound Pressure Level	26 / 32'' - 83 dB(A)

ELECTRICAL

Rated Operating Voltage	26 / 32'' - 36 VDC
Battery Format	26 / 32'' - 6x AGM, 250 Ah @ 20h, 6V
Calculated Nominal Current Consumption	26 / 32'' - 30 A
Typical Battery Run-Time	26 / 32'' - 4 – 6 hours
Rated Power Input	26'' - 3,700 W / 4.96 hp
	32'' - 3,700 W / 4.16 hp

ENVIRONMENTAL

Ambient Humidity	26 / 32'' - 5% – 85%
Operating Temperature	26 / 32'' - 5°C – 35°C / 41°F – 95°F
Storage Temperature	26 / 32'' - -20°C – 50°C / -4°F – 122°F

SENSING

2-D Lidar Range	26 / 32'' - 20 m / 65.6 ft
Lidar FOV	26 / 32'' - 360°
Lidar Height	26 / 32'' - 385 mm / 15.2 in
3-D Sensor Range	26 / 32'' - 3 m / 9.8 ft
